Features of Tedee Door Sensor
Real-Time Door Status Monitoring
The Tedee Door Sensor instantly detects whether your door is open or closed and displays the exact status in the Tedee application. Unlike traditional systems that only know if the bolt is locked, this smart sensor provides clear and precise information about the physical state of your door. You will see on your smartphone screen if the door is fully closed, open or ajar, combining this information with the lock status for a complete view of your home's security. This dual information system eliminates guesswork and provides absolute certainty about your entrance security.
Intelligent and Safe Automatic Locking
With the Tedee Door Sensor integrated, your smart lock automatically locks immediately after the door closes. This system prevents the bolt from extending when the door is open or ajar, protecting internal mechanisms from damage. You no longer need to remember to manually lock; the sensor detects closure and triggers automatic locking without delays, offering maximum convenience and security. Your hands-free experience becomes truly seamless.
Security Alerts and Smart Notifications
Receive instant push notifications if the door remains open longer than your preset time limit. The alert interval is fully customizable according to your needs. Additionally, the sensor logs every opening and closing in the activity history, creating a detailed security record that you can review anytime. Ideal for monitoring entries and exits, detecting unauthorized access, and maintaining complete control over who enters your home and when.
Technical Specifications and Compact Design
The Tedee TDSV1.0 sensor features ultra-compact dimensions of 30 × 64 × 14 mm and operates via Bluetooth 2.4 GHz low-energy technology. The magnetic magnet measures 17 × 64 × 7 mm and mounts using pre-applied adhesive without tools. It uses a CR2032 3.0V, 220mAh lithium battery that provides up to 2 years of battery life. Optimal operating range is up to 2 meters from the lock, with operating temperature between 5°C and 50°C (indoor only) and maximum humidity of 95%.
Quick and Hassle-Free Installation
Installation is completely wireless and tool-free. The sensor and magnet come equipped with factory pre-applied adhesive that allows direct placement on the door and frame. Simply select the device in the Tedee app, scan the included activation code, and calibrate the sensor per instructions. The entire process takes just minutes, with no holes, no nails, and no damage to your door.
Advanced Security and Encryption
The Tedee Door Sensor uses AES-256 encryption on all wireless connections and TLS 1.3 for cloud communication. Your movement and access information is completely protected and complies with the strictest GDPR standards. Bluetooth Low Energy (BLE 5.0) communication keeps your data private while providing automatic firmware updates to keep the device always secure and current.
Compatibility and Tedee Ecosystem Integration
The sensor is compatible with Tedee PRO, Tedee GO, and Tedee GO2 smart locks. For remote access from outside your home, you'll need a Tedee Bridge connected to WiFi. Once integrated, the sensor works perfectly synchronized with your lock, providing complex automations such as locking after door closing, preventing locking on open doors, and context-aware alerts based on actual door status.
Use Cases: Security for Multiple Scenarios
Ideal for smart homes, apartments, offices, and commercial spaces. Monitor staff entrances, automate closing after hours, receive alerts if anyone leaves doors open accidentally, and monitor deliverer or supplier access. Perfect for families with children: get notifications if a door is left open. On vacation homes: confirm from anywhere that doors are closed. The system's flexibility adapts to any security and automation need you may have.
Package Contents

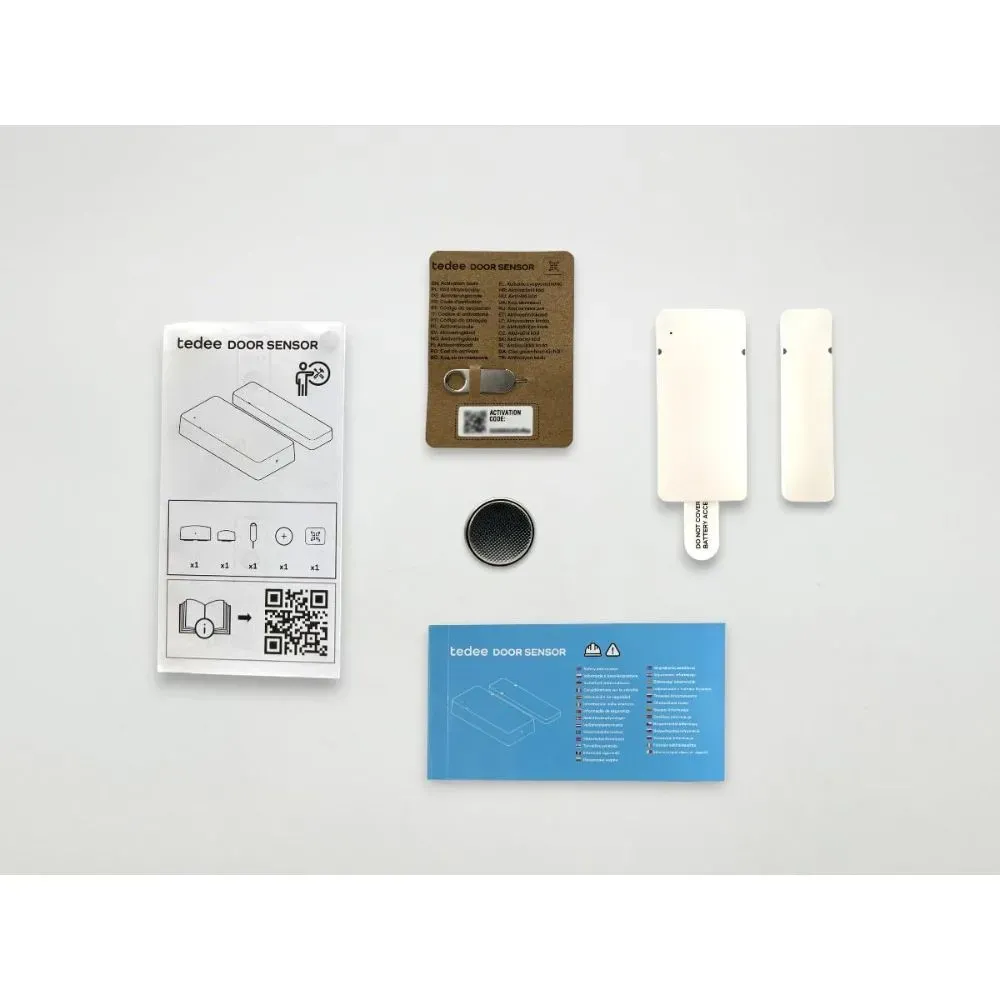

Each purchase includes: Tedee Door Sensor, magnetic mounting magnet, CR2032 lithium 3.0V battery (pre-installed), battery cover opening tool, activation code card, mini manual, health and safety booklet. Pre-applied adhesive already installed on sensor and magnet for immediate mounting and installation.
