Features of the Corsair Frame 4500X LX-R RGB Link Panoramic Glass White
Spectacular Panoramic Design with Wraparound Glass

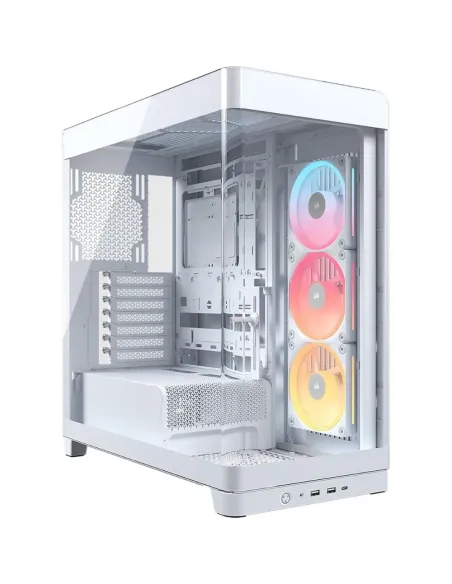

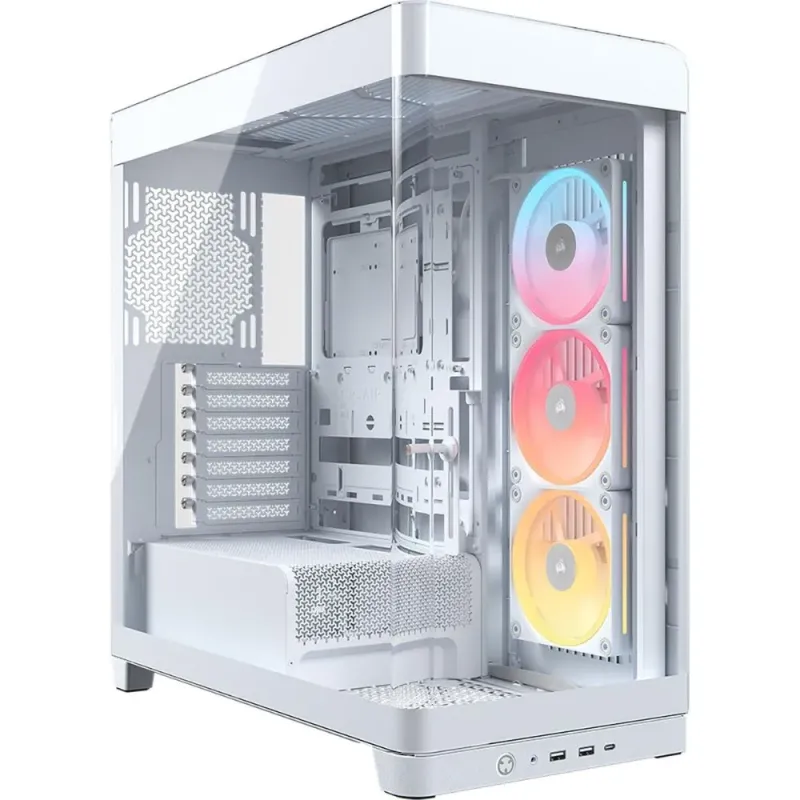

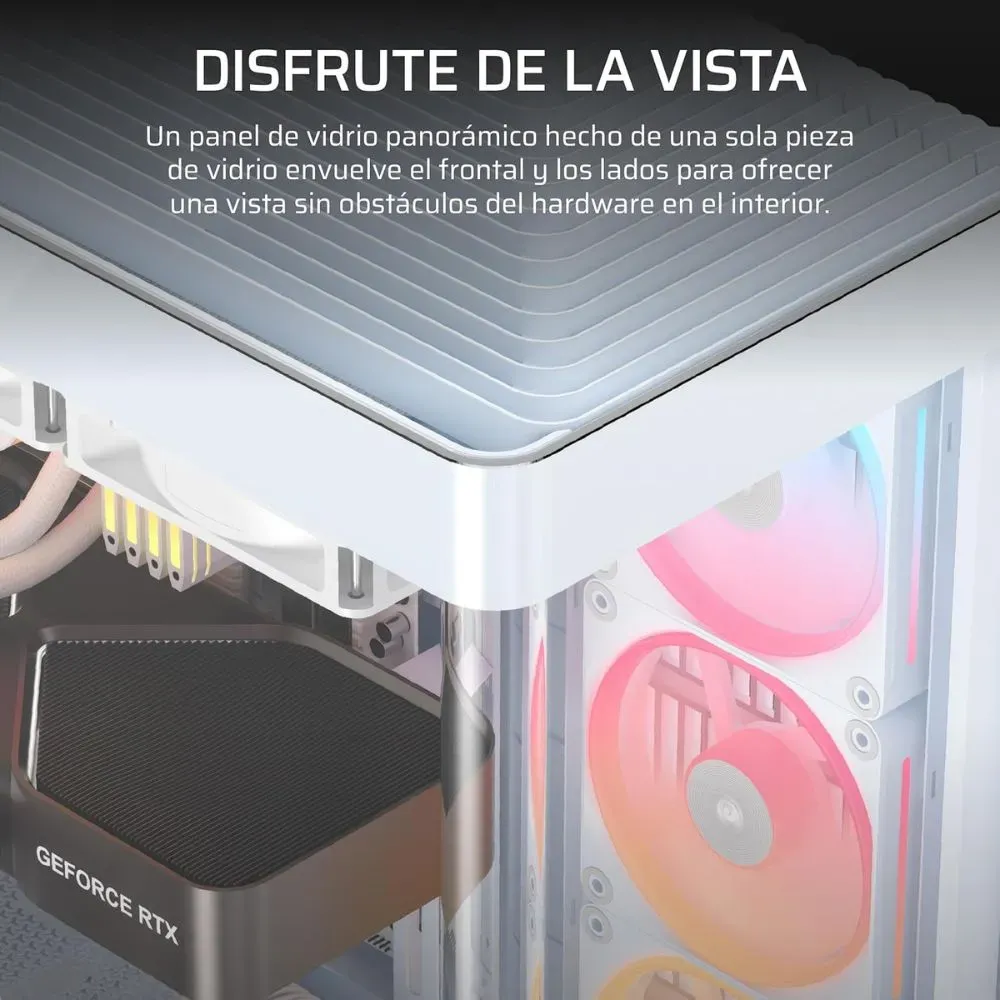

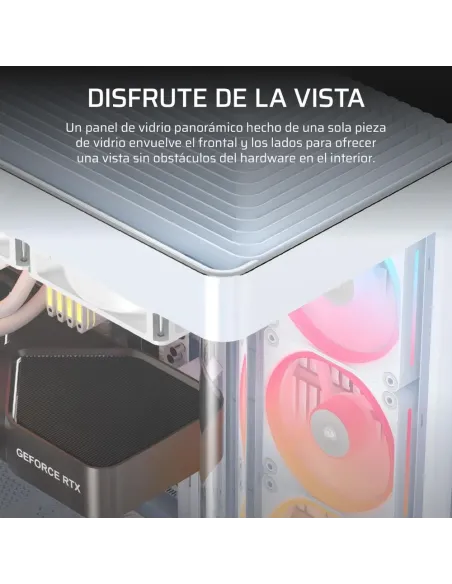

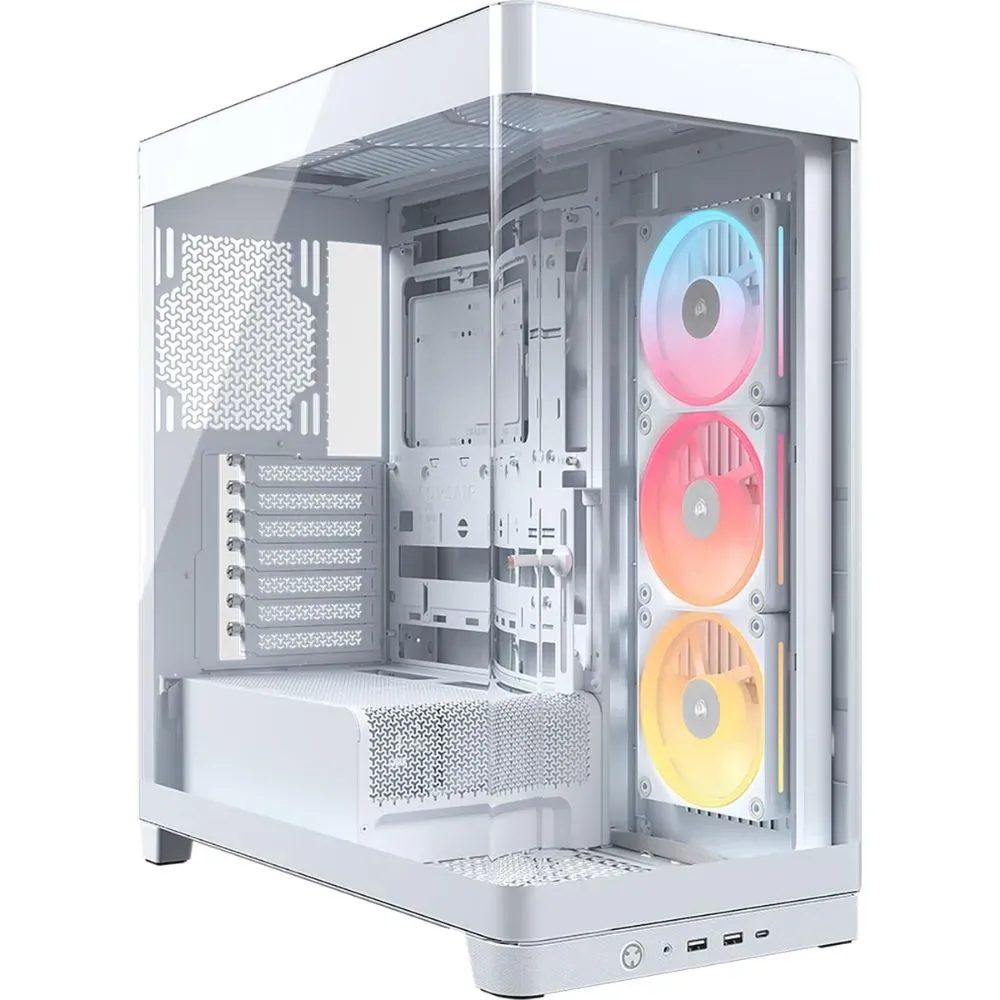

The Corsair Frame 4500X LX-R RGB Link features a single-piece curved tempered glass panel that spans both the front and side, creating a visual effect unlike any other on the market. This glass is laminated with an invisible coating that enhances safety and reduces noise, allowing you to showcase your hardware with unobstructed views from any angle. The aesthetic design is outstanding, transforming your setup into a true work of visual art.
Premium Cooling System with iCUE LINK Fans

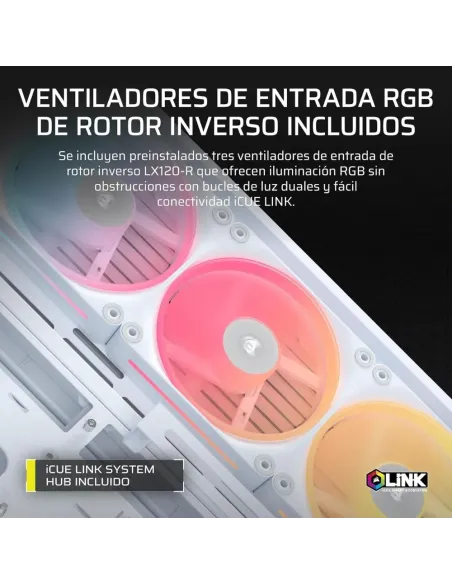

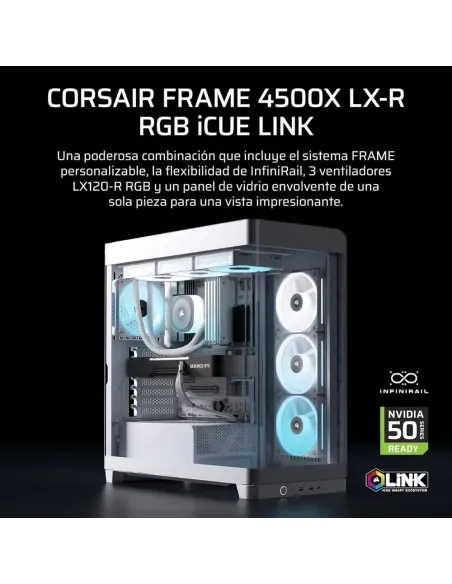

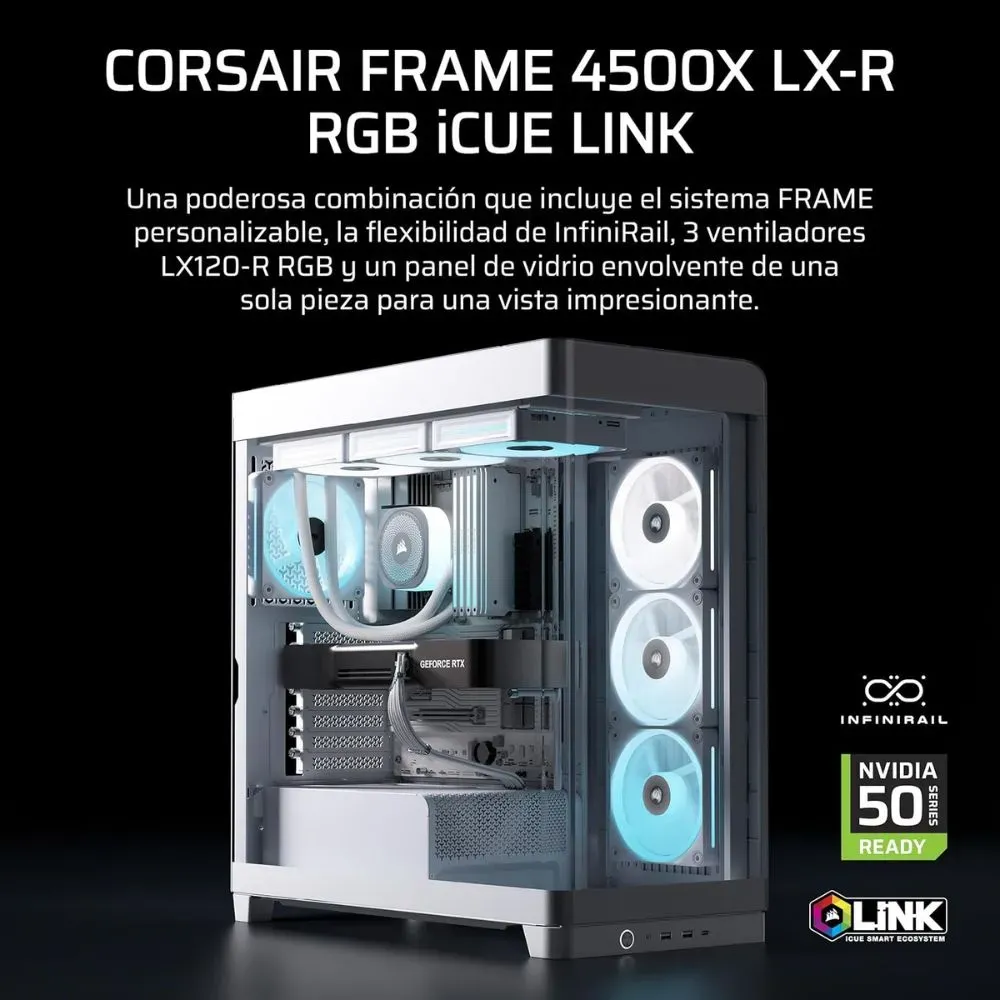

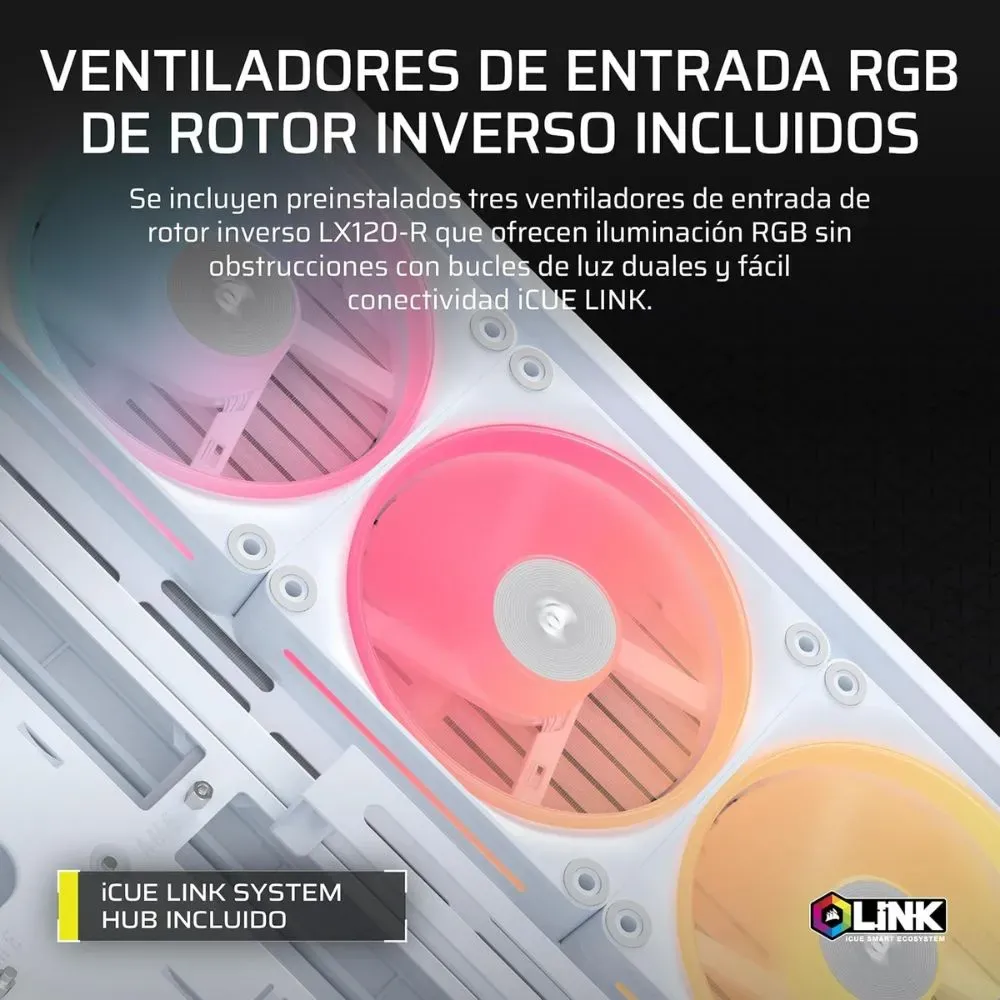

This mid-tower case includes 3 pre-installed LX120-R RGB reverse-rotation fans, each with built-in iCUE LINK technology for simplified control via a single cable. The fans offer a maximum speed of 2,400 RPM, an airflow of 66.7 CFM, and a static pressure of 4.72 mmH₂O. The included iCUE LINK System Hub allows you to control up to 24 RGB devices from a single point, ensuring synchronized and customizable lighting. Cooling is efficient and quiet thanks to the reverse-rotor design, which directs cool air without obstructing the RGB display.
Maximum Fan Flexibility with the InfiniRail System

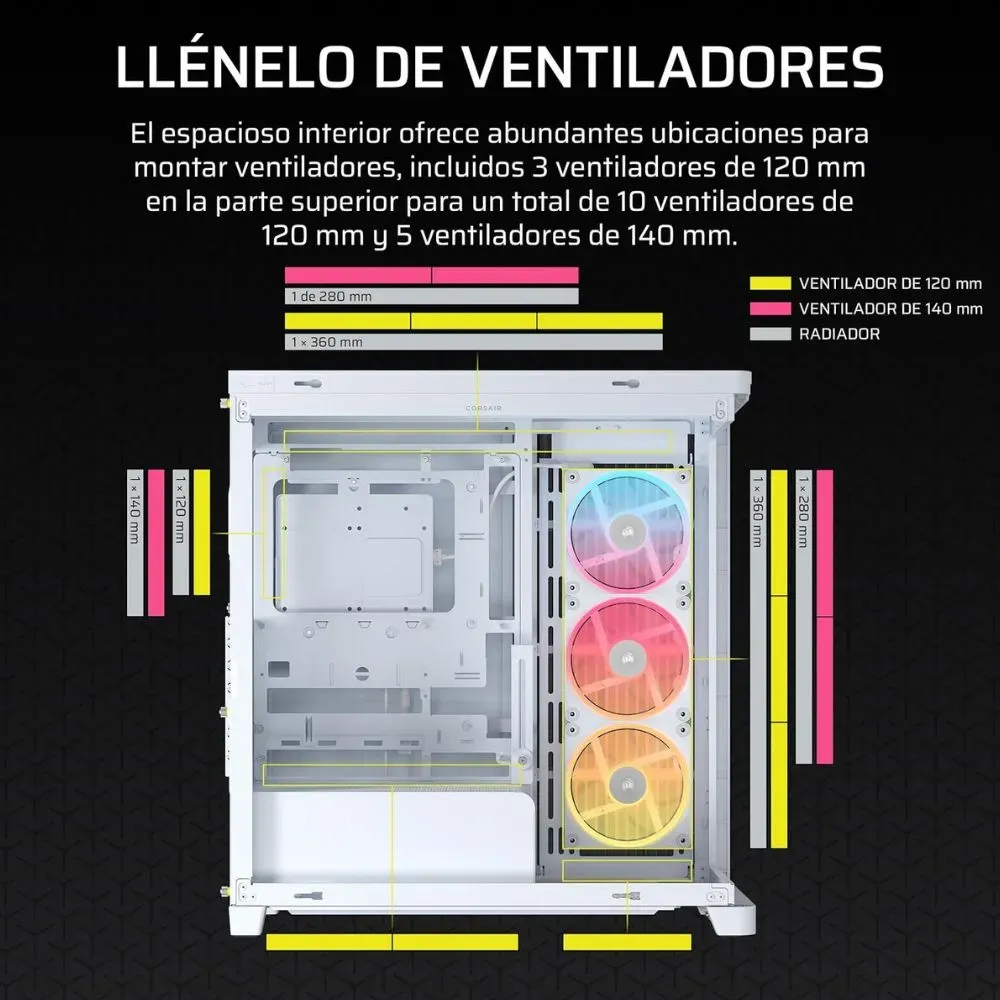

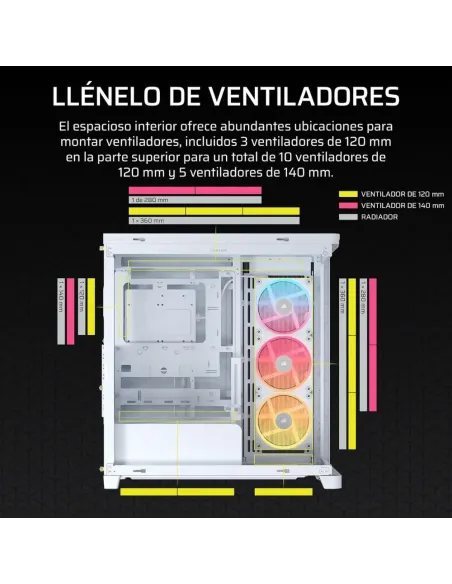

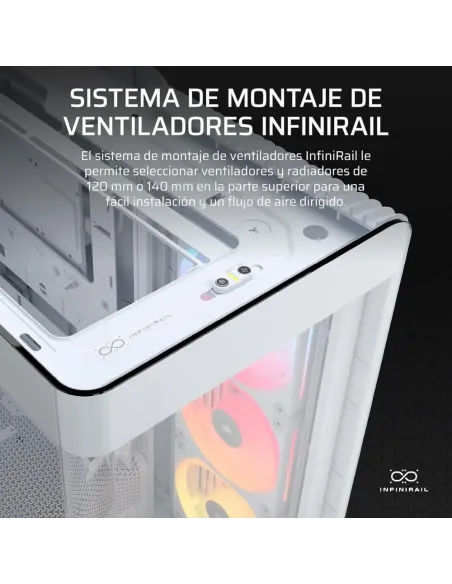

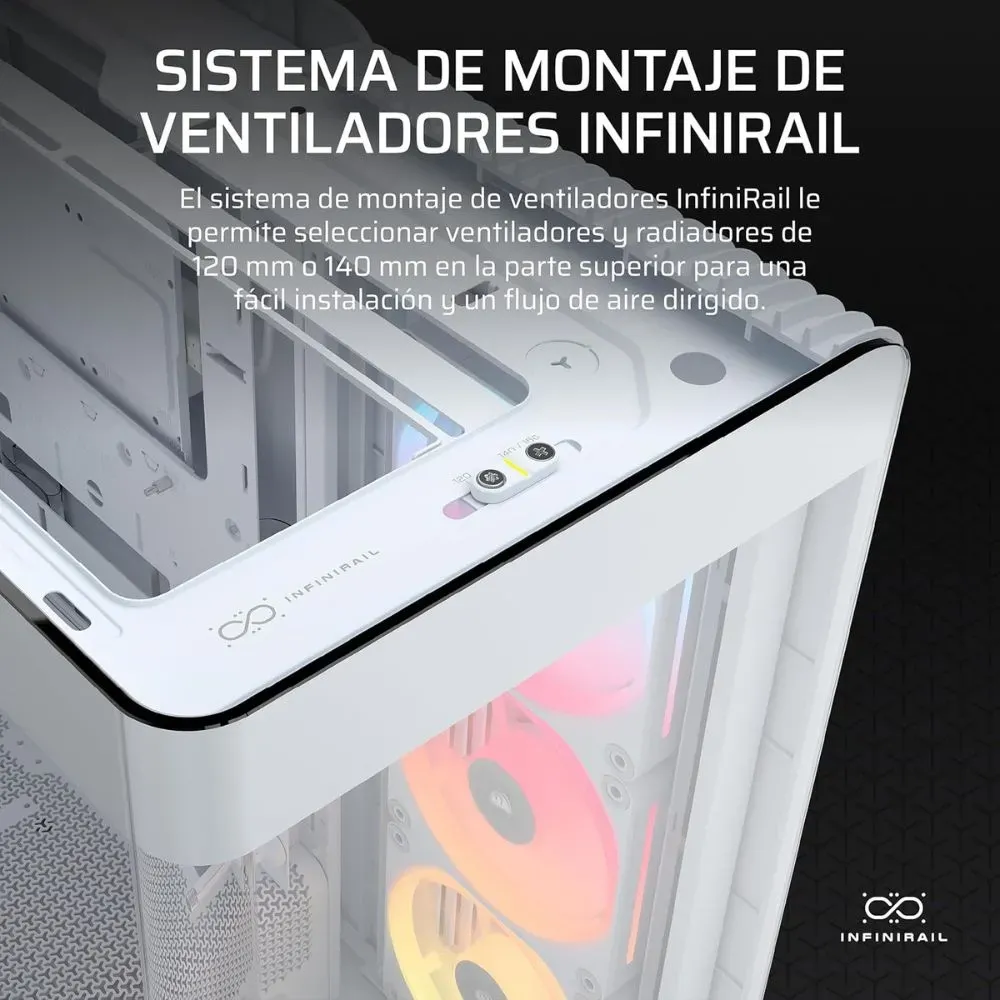

The multi-point steel InfiniRail system revolutionizes top-panel fan configuration. This system allows you to easily slide the rails to mount 120 mm or 140 mm fans exactly where you need them, without the limitations of fixed mounting points. The case supports up to 10 120 mm fans or 5 140 mm fans, offering continuous airflow options on all sides. With support for two 360 mm radiators simultaneously, this case is ideal for advanced liquid cooling setups.
Premium Compatibility with Reverse Motherboards

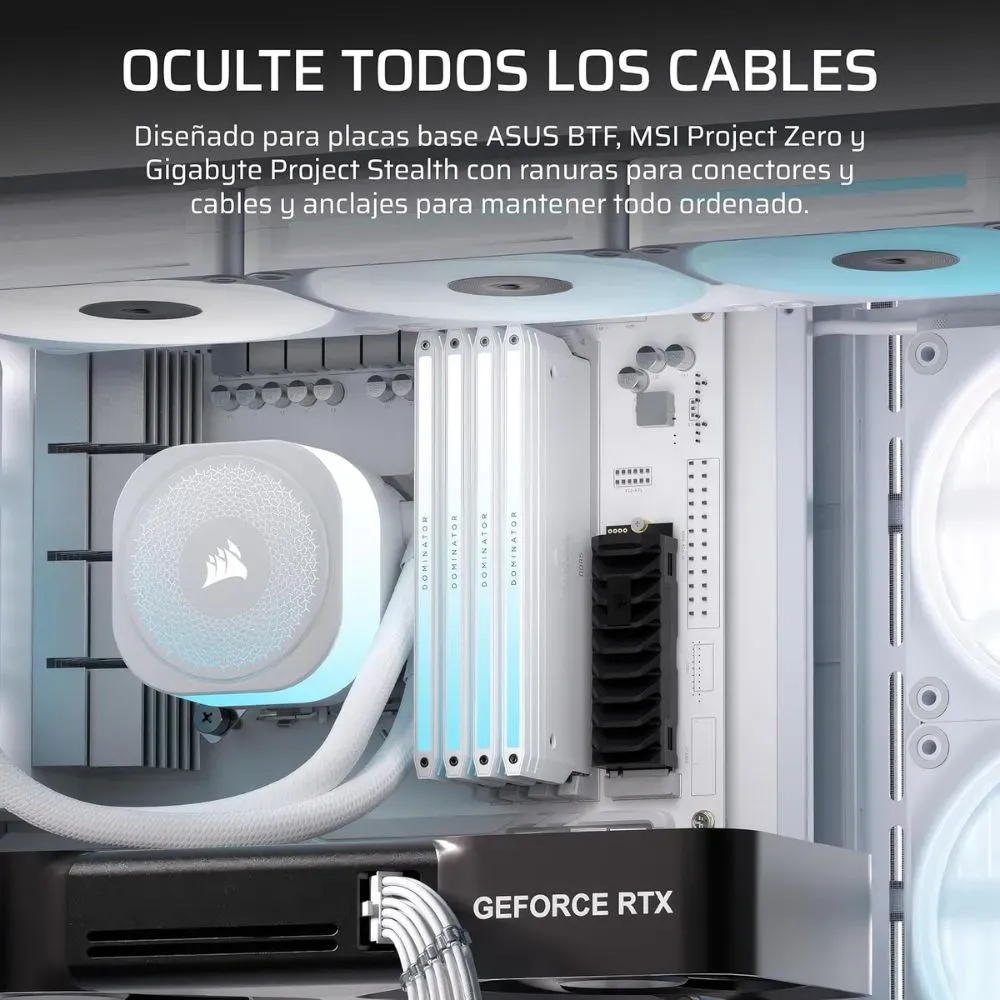

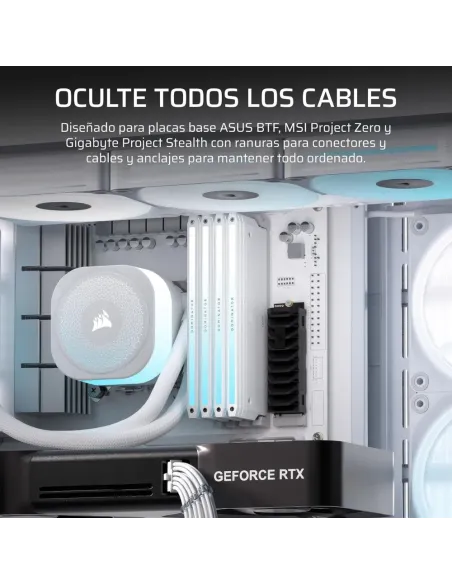

The Frame 4500X is fully compatible with BTF (Back-To-Front) motherboards from ASUS, MSI, and GIGABYTE, including ASUS ROG BTF, MSI Project Zero, and GIGABYTE Project Stealth. This means that the connectors are located at the rear, allowing for a clean interior with no visible cables. The chassis also supports all form factors: Mini-ITX, Micro-ATX, ATX, and E-ATX (up to 305mm x 277mm), maximizing compatibility with any modern motherboard.
Generous Space for High-Performance Hardware
With generous dimensions (478 mm high x 499 mm deep x 246 mm wide), the Frame 4500X offers more than enough space for graphics cards up to 460 mm, allowing for seamless installation of flagship components. The chassis supports CPU coolers up to 185 mm in height and power supplies up to 250 mm, providing complete flexibility in component selection. The GPU anti-drop stabilizer arm protects your graphics card from damage, ensuring it remains stable even in high-performance setups.
FRAME Modular Design for Endless Customization
The case features the revolutionary FRAME modular system, allowing you to swap out components as your build evolves. You can replace the motherboard tray, swap out side fans for a cable cover, or exchange the PSU cover for a vertical GPU mounting design. This modularity makes it a long-term investment that grows with you, adapting to your future needs without requiring a case upgrade.
Cable Management and Impeccable Construction
The rear of the chassis features ample cable routing space with Velcro straps around the perimeter for easy management. The wide cable cutouts and reusable Velcro straps keep everything organized. It includes a reusable screw tray to prevent you from losing important parts during assembly, as well as special QuikTurn screws that speed up fan installation.
Optimized Cooling with Dust Filters
The Frame 4500X features dust filtration at the bottom and side intakes, protecting your components from contaminants. The side panels are vented to improve the case’s airflow, while the top panel features a polygonal grille pattern that optimizes airflow. This combination of features ensures low temperatures even under prolonged load.
Modern Front Panel and Comprehensive Connectivity

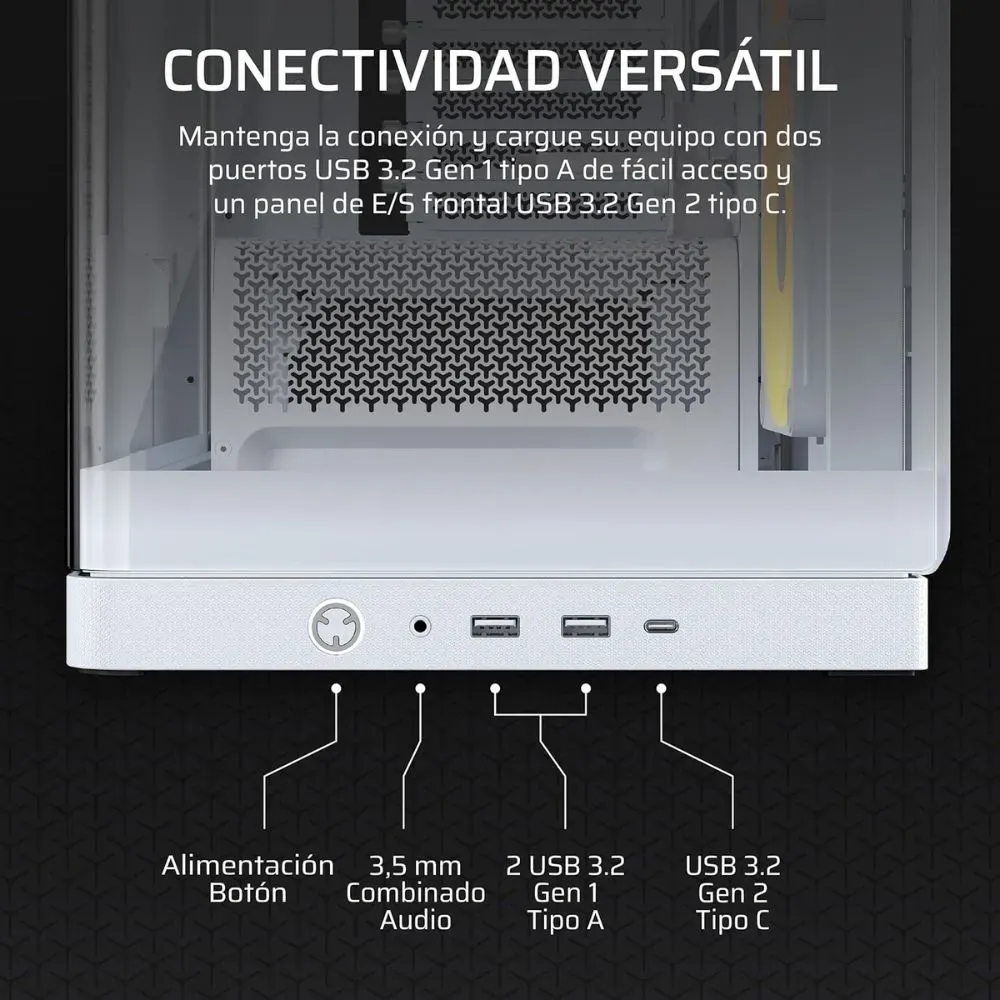

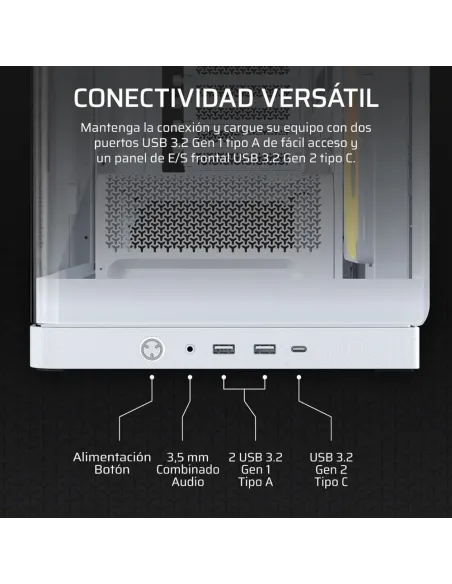

The front I/O panel is fully modern, including 1 USB 3.2 Gen 2 Type-C port, 2 USB 3.2 Gen 1 Type-A ports, and a combined headphone and microphone jack—all within easy reach. The ports are strategically located for easy access, making it simple to connect gaming peripherals without any hassle.
Vertical GPU Mounting and Rotatable Slot Panel
Put your graphics card front and center with vertical mounting made easy by the rotatable slot panel, which rotates 90 degrees without tools. This not only improves the visual aesthetic but also optimizes airflow by directing cooling specifically toward the GPU, improving temperatures on high-performance cards.
Excellent Storage Compatibility
The combined drive tray accommodates 1 3.5-inch hard drive and 2 2.5-inch SSDs, offering versatile storage options. The design allows for easy access and replacement, facilitating future upgrades without removing major components.
Premium Materials and Sturdy Finish
The case is constructed from high-quality steel, laminated tempered glass, and durable ABS plastic, ensuring a robust build that will withstand years of use. The pure white finish offers a striking visual contrast that stands out especially with the internal RGB lighting—perfect for builds that will be the centerpiece of your setup.
Ideal Use Cases
The Corsair Frame 4500X LX-R RGB Link White is perfect for: high-performance gaming with flagship systems, overclocking and advanced water cooling, streaming and content creation with liquid cooling, showcase builds that require premium aesthetics, and systems with multiple GPUs or radiators. Any user who values both performance and aesthetics will find this case to be the ultimate solution.
